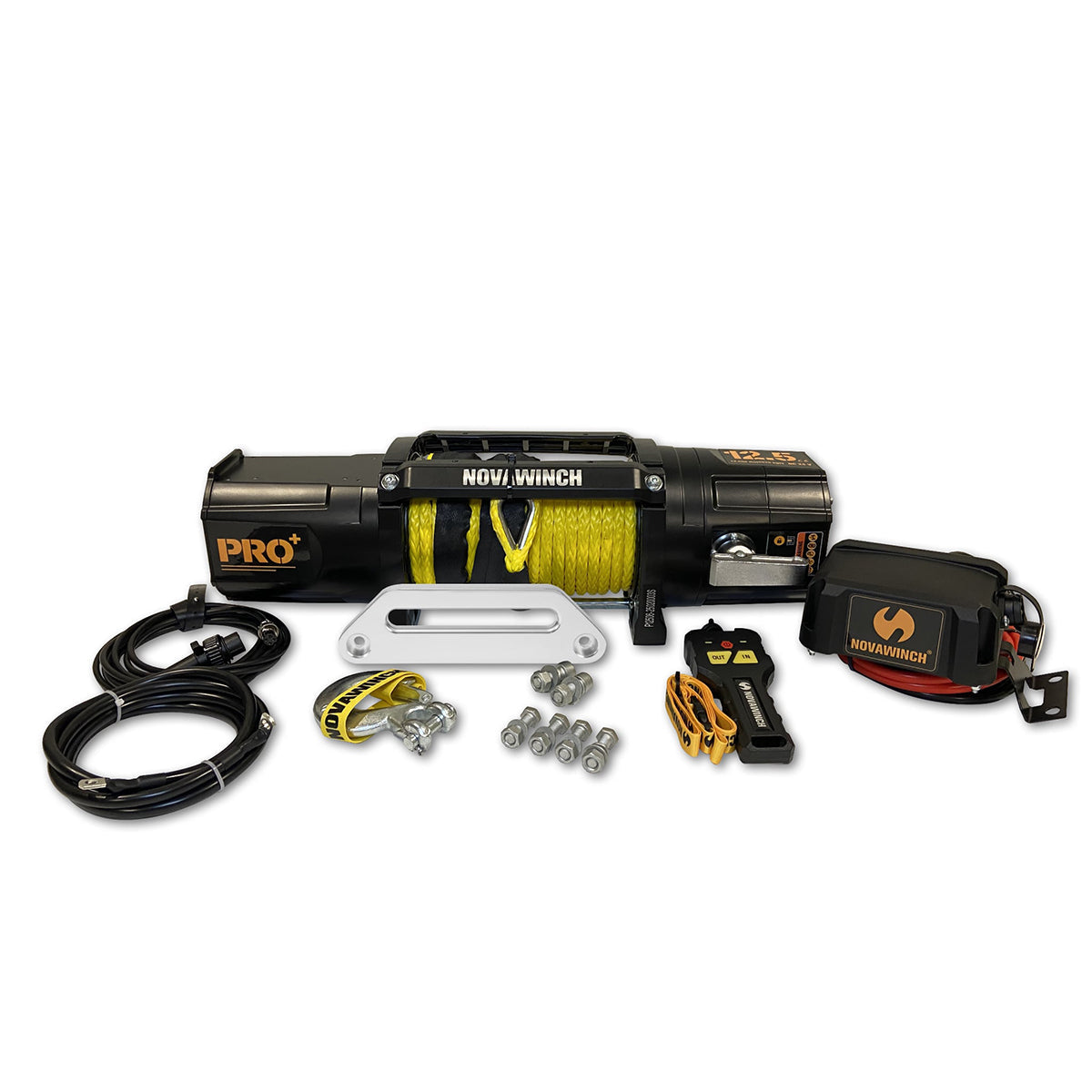

PRO PLUS NOVAWINCH 12,500LB 12-VOLT ELECTRIC WINCH

Pro Plus Novawinch 12,500lb 12-volt electric winch.

The Pro Plus 12500 is the latest premium winch model from Novawinch ideal for 4WD applications. This winch combines fast, low to mid-load line speed, 12500lb of line pull, double-lock brake system and a super strong welded drum.

Like the previous iteration of this winch, the Pro Plus 12500 has you covered from all performance angles and is a strong contender for most 4WD installs and applications.

15 metres per minute unloaded line speed with low resistance free spool.

Novawinch winches offer great performance at an affordable price, backed by an industry-leading warranty. As the manufacturer behind some of the biggest names in the business, Novawinch brings proven quality and pedigree to its own proprietary brand.

Includes:

• 12-volt foot-down format winch
• Offset Fairlead
• Synthetic rope
• Winch hook
• Waterproof rubber remote, 3.9m cord

Key Features

• High-capacity drum – 26m x 9.5mm synthetic rope
• Limited lifetime warranty (3 years electrical)
• Larger drum housings for easy cable management
• Separate solenoid enclosure for easy mounting
• Built-in wireless remote option for easy operation
• IP68 rated water protection

Winch Specs

• Rated line pull: 12500lbs (5670kg) single line
• Motor (Series wound): DC 12V:6.4hp/4.7kW
• Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio
• Clutch: Rotating ring gear, 90 degree turn lever
• Braking action: Automatic in gearbox
• Fairlead:  Aluminium hawse
• Drum size: 63mm×222mm
• Dimensions: 608mm L x 180mm W x 238mm H
• Bolt pattern: 254mm x 114mm
• Net Weight: 45.5kg
• Solenoid enclosure to motor wires approx 500mm length
